SLIM LINE

Maximum performance, Minimum footprint. When rack space is limited, our SLIM LINE range of digital audio processors give you all the power you need from studio voice conditioning through to final broadcast playout. Whether you need comprehensive dynamics and loudness management, or a “build it yourself” modular software solution, we have the answer in our versatile 4 or 8 channel units.

SLIM LINE

Loudness Control and Management

Take full control of your loudness with the audibly transparent Level Magic algorithm. Class leading intuitive and adaptive loudness processing in stereo or surround, for television and radio broadcast applications.

  • Dual Stereo Level Magic  Audio Processor - EASY LOUDNESS SDI EASY LOUDNESS SDI
    Dual Stereo Level Magic Audio Processor - EASY LOUDNESS SDI
    • Level Magic loudness management according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Loudness measurement supporting all worldwide standards
    • True peak limiter
    • Fail Over with signal loss detection
    • Ethernet connectivity for logging, measurement, setup and control via web browser
    • On board interfaces: 1x AES/EBU I/O (XLR & BNC), 1x SDI I/O (3G/HD/SD), Sync in, Sync out, 8 GPI/O
    • 19”, 1RU device, redundant PSU
    product page
  • Dual Stereo Level Magic Audio Processor - EASY LOUDNESS AoIP EASY LOUDNESS AoIP
    Dual Stereo Level Magic Audio Processor - EASY LOUDNESS AoIP
    • Level Magic loudness management according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Loudness measurement supporting all worldwide standards
    • Fail Over with signal loss detection
    • Ethernet connectivity for logging, measurement, setup and control via web browser
    • On board interfaces: 1x AES/EBU I/O (XLR & BNC), 1x Option Board AoIP Dante® (AES67) I/O, Sync in, Sync out, 8 GPI/O
    • 19”, 1RU device, redundant PSU
    product page
  • 4 Channel Level Magic Audio Processor - D*AP4 LM D*AP4 LM
    4 Channel Level Magic Audio Processor - D*AP4 LM
    • Level Magic loudness management according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Dynamics with compressor and expander/gate
    • 5 band parametric EQ
    • Optional FM Conditioner, De-Esser, Spectral Signature - Dynamic EQ
    • I/O modularity via 1 interface slot
    • Voice Over functionality
    • Fail Over with signal loss detection
    • Ethernet connectivity for set up and control via web browser
    • 19”, 1RU device, redundant PSU
    product page
  • 8 Channel Level Magic Surround Audio Processor - D*AP8 TAP D*AP8 TAP
    8 Channel Level Magic Surround Audio Processor - D*AP8 TAP
    • Level Magic loudness management according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Spectral Signature dynamic EQ
    • Surround Upmix functionality
    • Optional audio encoding & decoding: Dolby® Digital Plus, Dolby® Digital, Dolby® E, Pro Logic II
    • 19”, 1RU device, redundant PSU
    product page

Monitoring, Emulation and QC

For truly comprehensive audio monitoring, audition your stereo or surround mix, check compliance with relevant loudness standards and verify critical metadata parameters to ensure that the audio you deliver always reaches its maximum potential.

Voice Processors

Voice processing applications are the ultimate task for processing hardware as it requires a balance between natural sound and the required degree of individual EQ correction and compression to meet the requirements of your target media.

Configurable Processors

Need even more flexibility? Choose either a 4 or 8 channel base unit with true peak limiting, and then select from a range of optional processes and licences including loudness, dynamics, EQ, upmix/downmix, failover, voiceover and FM transmission conditioning.

  • 4 Channel Stereo Audio Processor - D*AP4 FLX D*AP4 FLX
    4 Channel Stereo Audio Processor - D*AP4 FLX
    • Flexible feature set, configurable by licenses
    • True peak limiter
    • Loudness measurement supporting all worldwide standards
    • Ethernet connectivity for set up and control via web browser
    • 19”, 1RU device, redundant PSU
    product page
  • 8 Channel Surround Audio Processor - D*AP8 FLX D*AP8 FLX
    8 Channel Surround Audio Processor - D*AP8 FLX
    • Multi channel / Multi format audio processing
    • Flexible feature set, configurable by licenses
    • True peak limiter
    • • Level Magic loudness management (optional) according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Optional audio encoding & decoding: Dolby® Digital Plus, Dolby® Digital, Dolby® E, Pro Logic II
    • 19”, 1RU device, redundant PSU
    product page

Remote Controllers

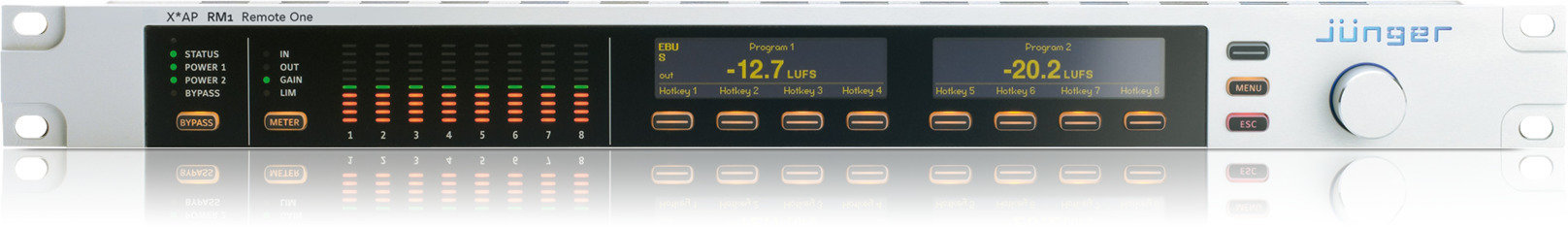

Jünger Audio’s Remote Controllers are the tool of choice for users preferring hands-on control instead of web-based interfaces. It may control a single device or a group of different devices accommodating any infrastructure requirements.

Accessories

Our SLIM LINE processing platforms are designed to also offer additional hardware options. Get even more flexibility and power with our analog audio-, video- or Dolby®- Accessory-Boards.
