For a totally custom built approach to digital audio processing, the C8000 modular system offers a wide range of hardware options including frames, I/O cards and processing cards that can be mixed and matched to create a unique solution for managing loudness and dynamics along with comprehensive Dolby® support.


C8000 – Modular Audio Processing and Interface System

The concept behind the C8000 modular system is total flexibility and adaptability for all digital audio processing applications. Choose a frame and then select only the modules with the required functionality to create a truly bespoke system.

  • C8000 - Feature Set
    C8000 - Feature Set
    • 19” frame based fully modular system (1Ru or 3RU frames)
    • Wide range of audio processing functionality
    • Extensive support for Dolby® decoding and encoding
    • SDI interface for embedding/de-embedding of audio, Metadata transport and lip sync control
    • Network based automation, control, management and measurement
    product page

C8000 Frames

This section provides information about the system frames available. These frame differentiate in their physical and logical capacity.

All frames are 19” based on the DIN 41494 standard and include 1RU and 3Ru options with card installation from the front, rear or both, providing up to 76HP of card capacity. Audio transport is via up to four independently isolated backplane busses. Construction is from all aluminium side panels and cross members with 0.8mm steel covers for effective RF screening.

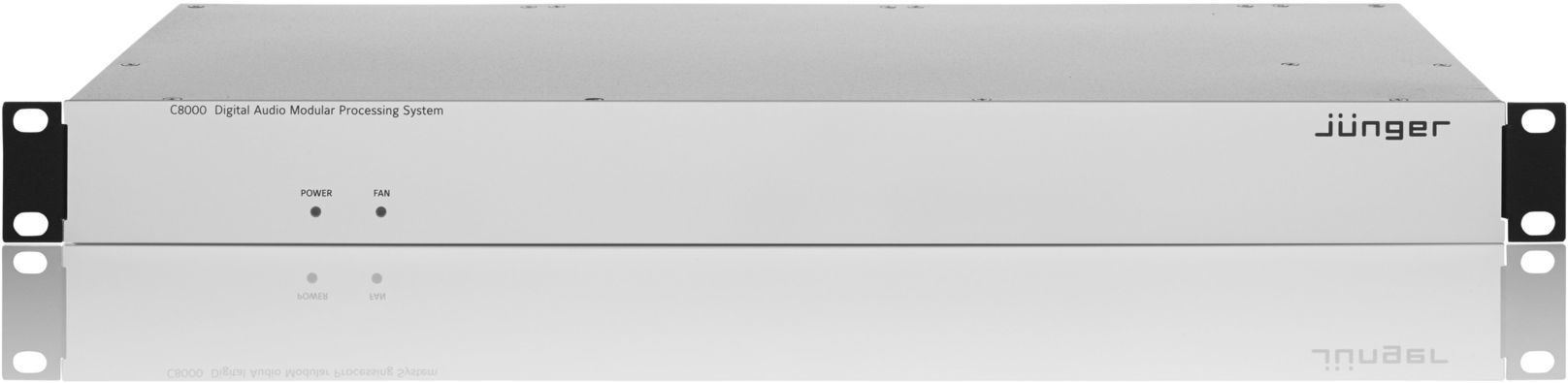

  • C8000 Frame 1RU C8912
    C8000 Frame 1RU
    • 19" / 1RU modular chassis, 240mm depth
    • Up to 3x 8HP or 6x 4HP space available (one side)
    • Front or rear rack mounting
    • Redundant internal power supplies, IEC sockets with mains filters
    product page

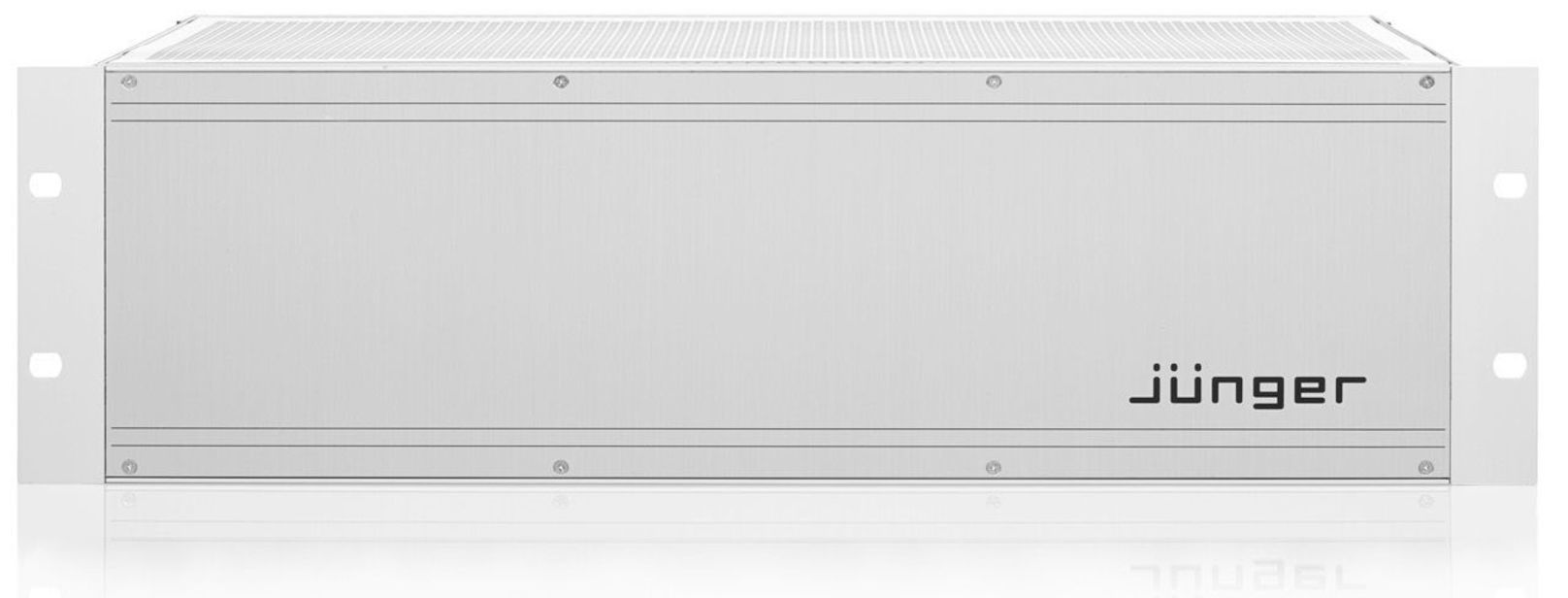

  • C8000 Frame 3RU 76HP C8922
    C8000 Frame 3RU 76HP
    • 19"/ 3RU modular chassis, 240mm depth
    • Up to 76HP space available (one side)
    • Single internal power supply, IEC socket with mains filter and power switch
    product page

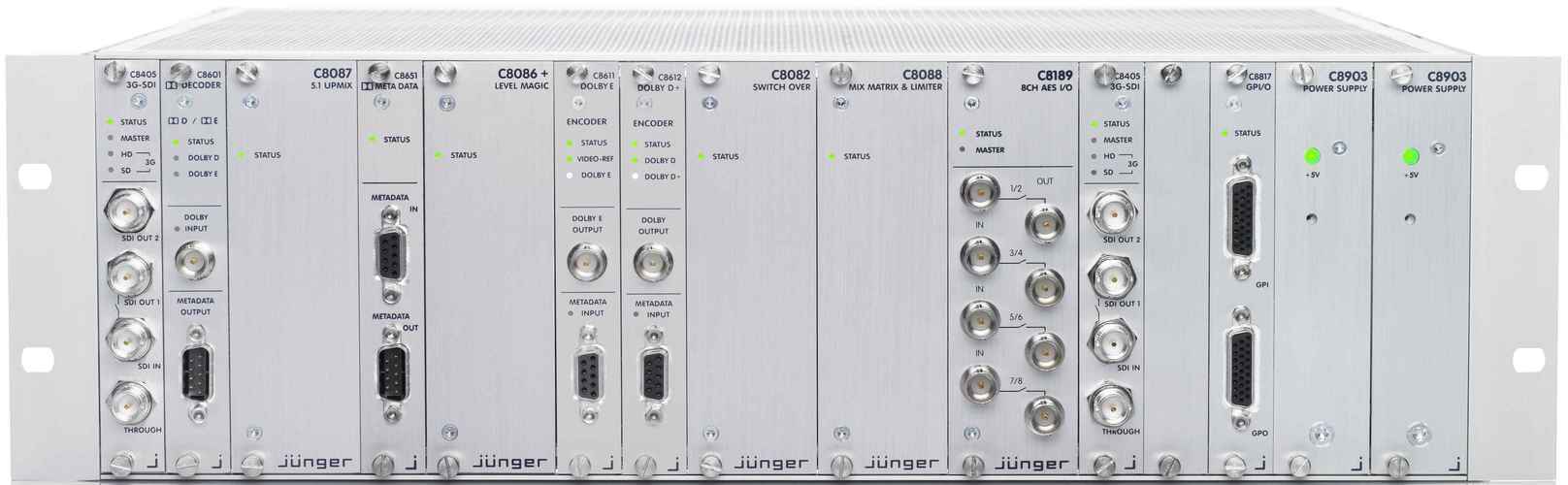

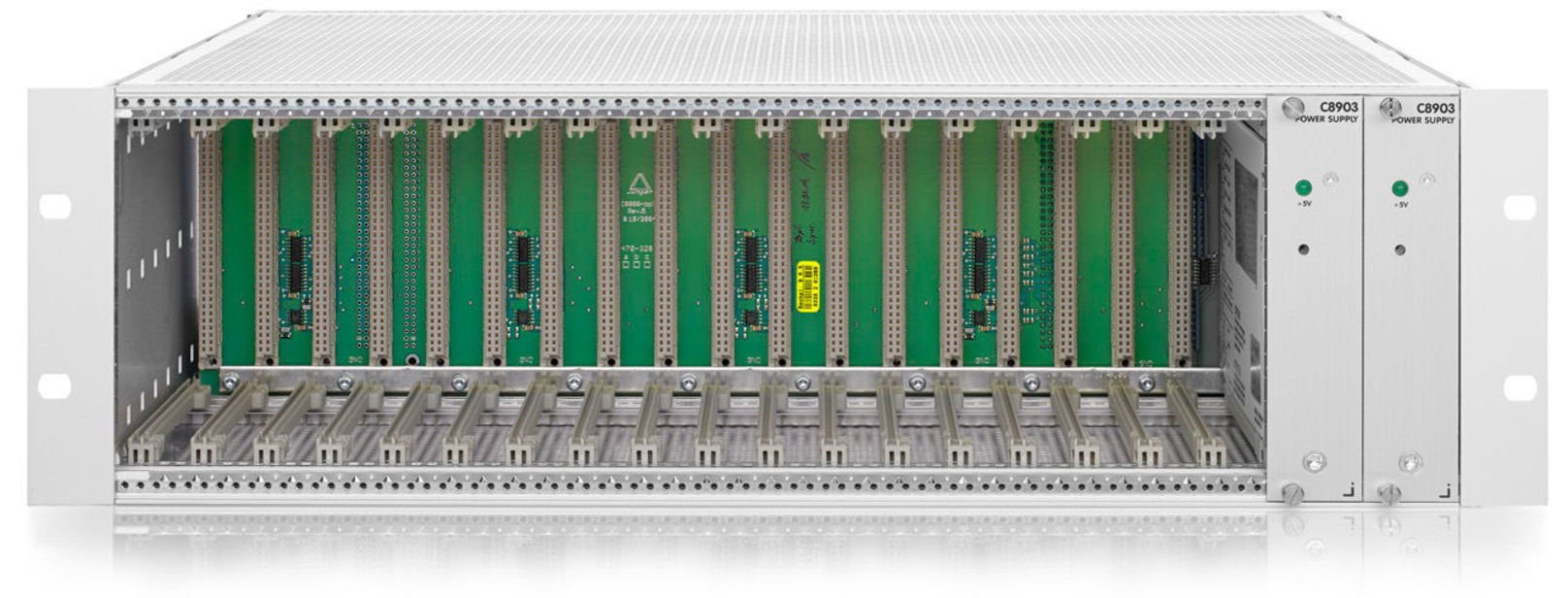

  • C8000 Frame 3RU 76 + 72HP C8932
    C8000 Frame 3RU 76 + 72HP
    • 19" / 3RU modular chassis, 435mm depth
    • Up to 76HP (front) and 72HP (rear) space available
    • Dual internal power supplies, IEC sockets with mains filters and power switches
    product page

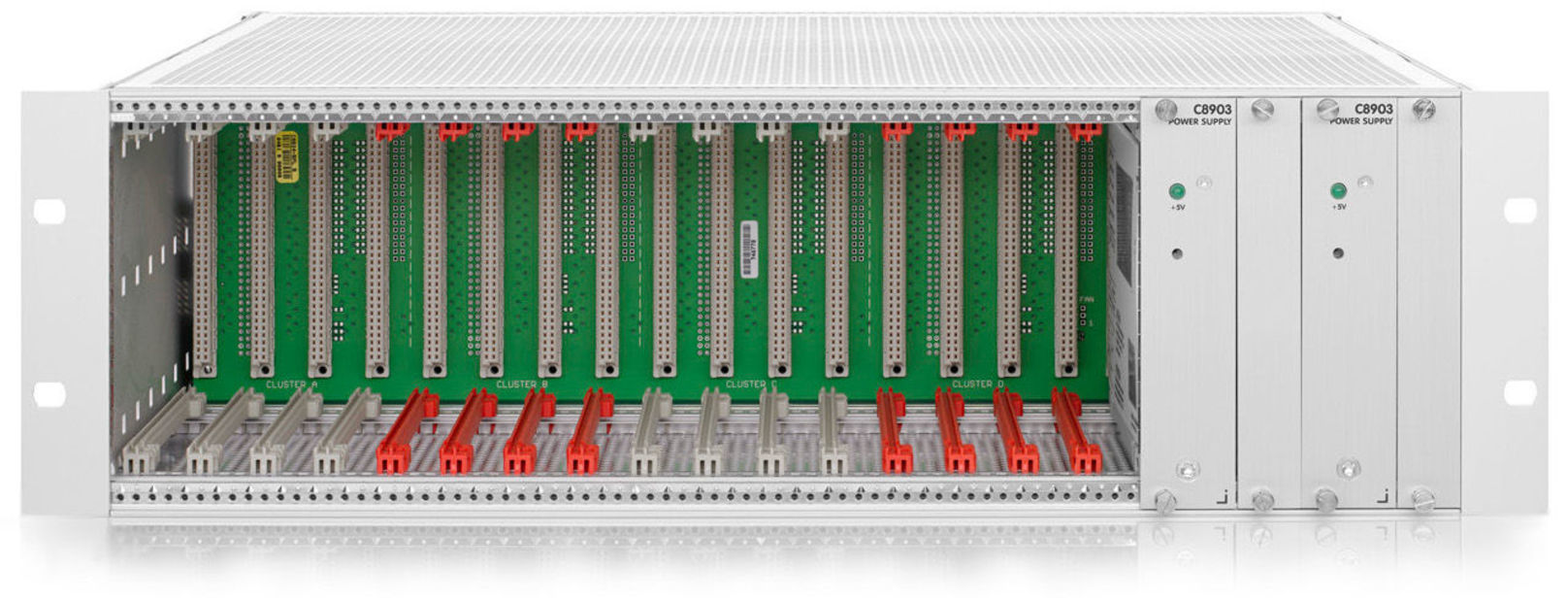

  • C8000 Frame 3RU 64/76; 4 independent sync areas C8934
    C8000 Frame 3RU 64/76; 4 independent sync areas
    • 4 independent bus-isolated backplane sections (each one with 8 slots back to back)
    • Local Audio Clock Distribution and Busses for each Section
    • Front & Rear Assembly (front-side: 64 HP; rear: 76 HP)
    • Redundant, Load Balanced Power Supplies with Individual Mains Input
    • 19" modular chassis, 3RU, 435mm depth
    product page

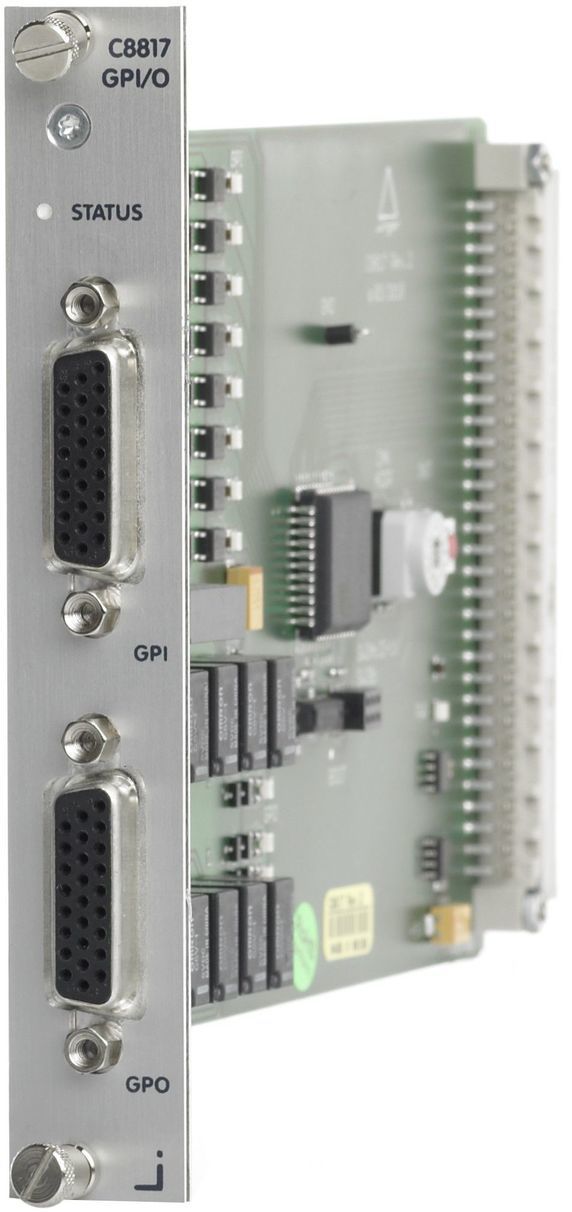

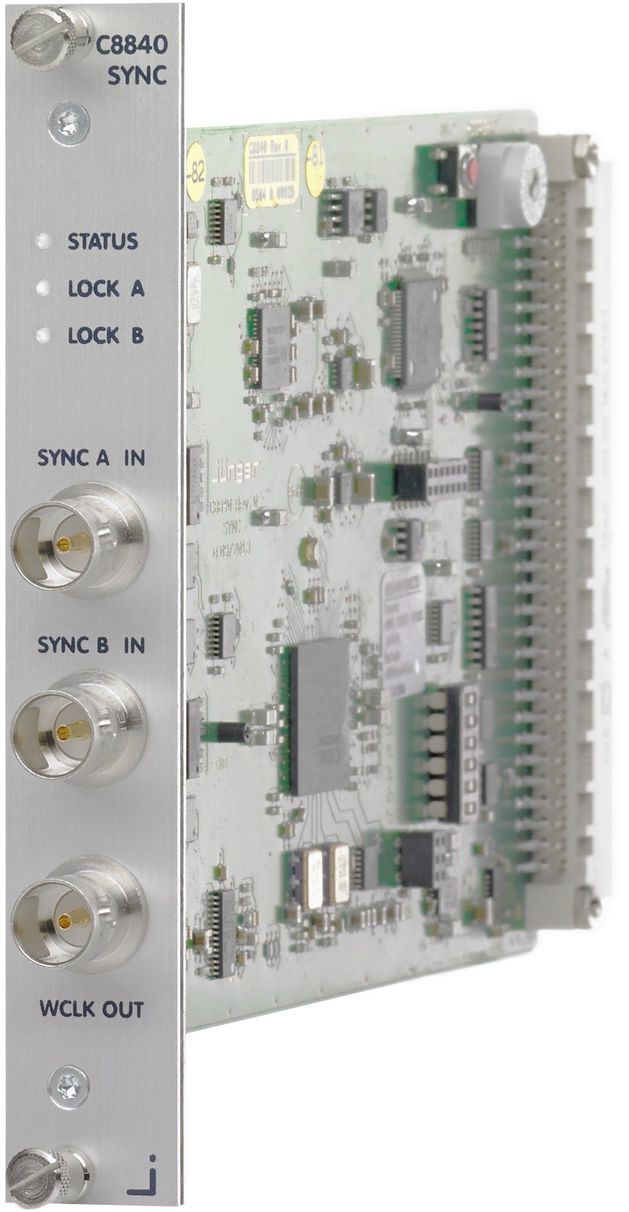

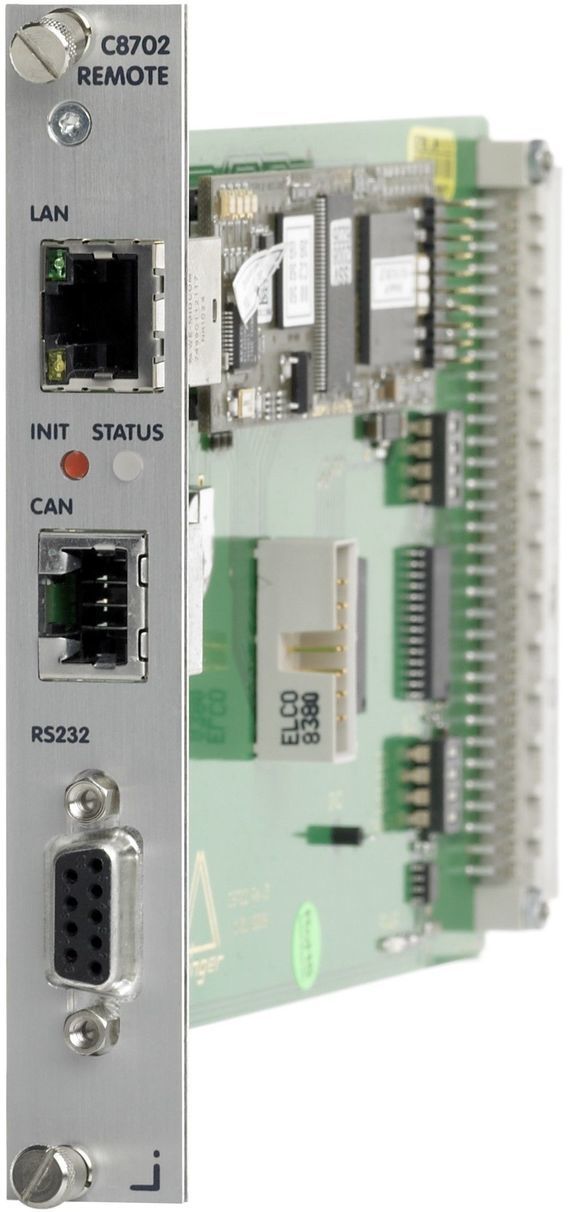

Control & Sync

This section provides information about vital system elements to syncronize the system or to establish network connectivity for a web based configuration tool.

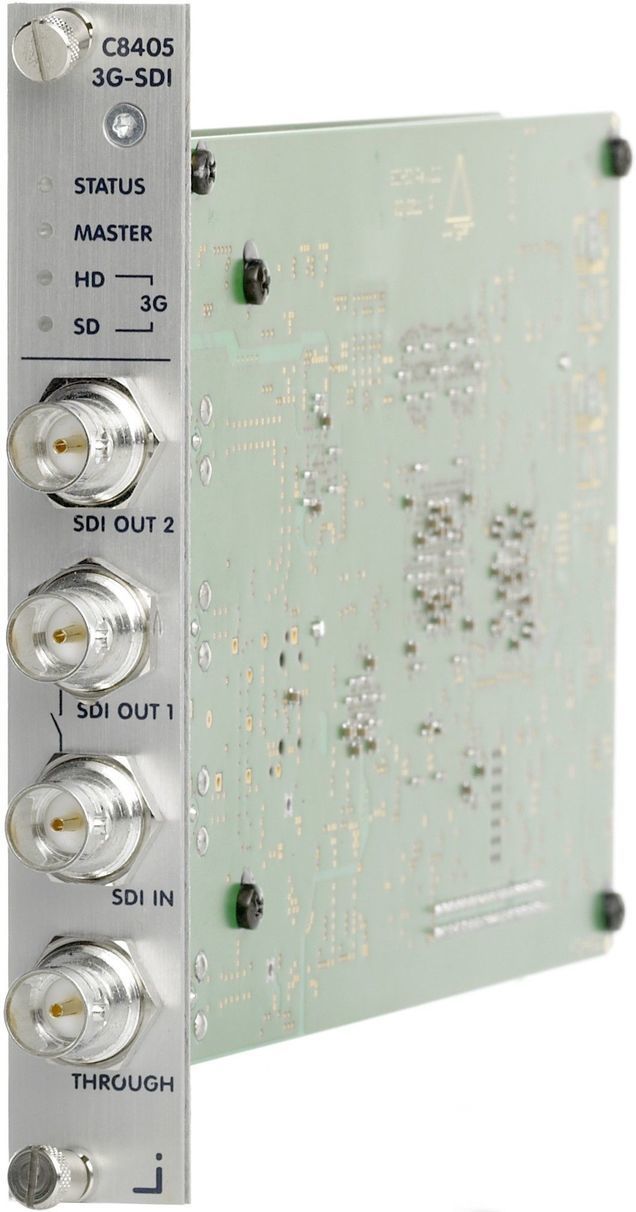

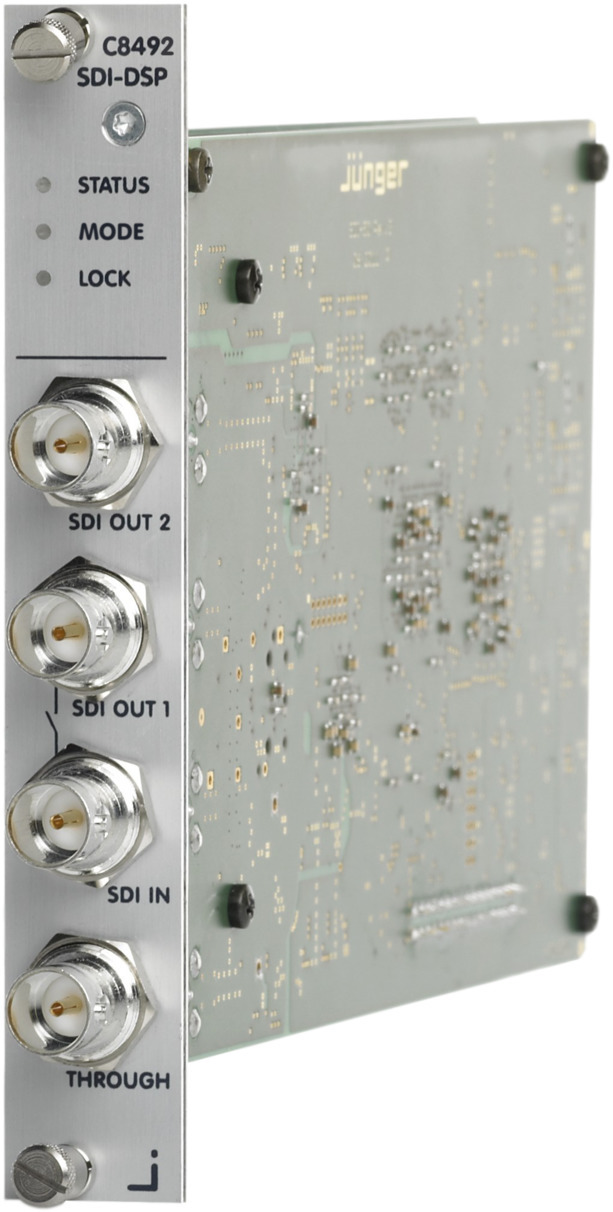

SDI Interfacing

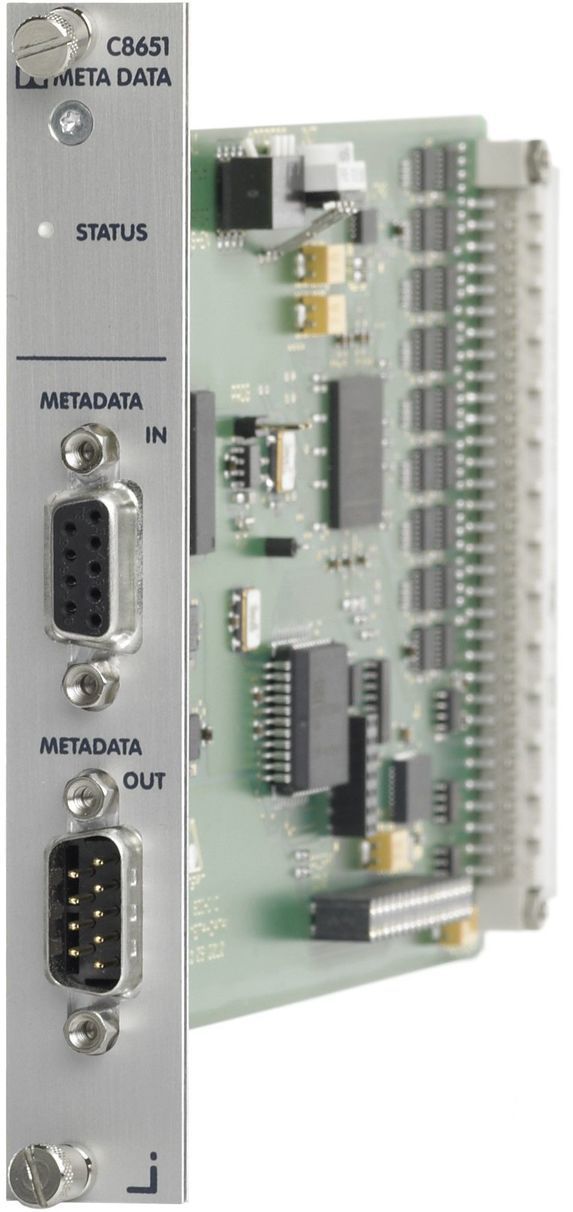

This MODULAR LINE’s SDI Interface board allows you to access and to modify all embedded audio channels on a SDI stream. It supports e.g. SDI (3G/HD/SD) - Embedding / deembedding, SDI audio group handling, Video delay to compensate audio processing latency and VANC metadata handling.

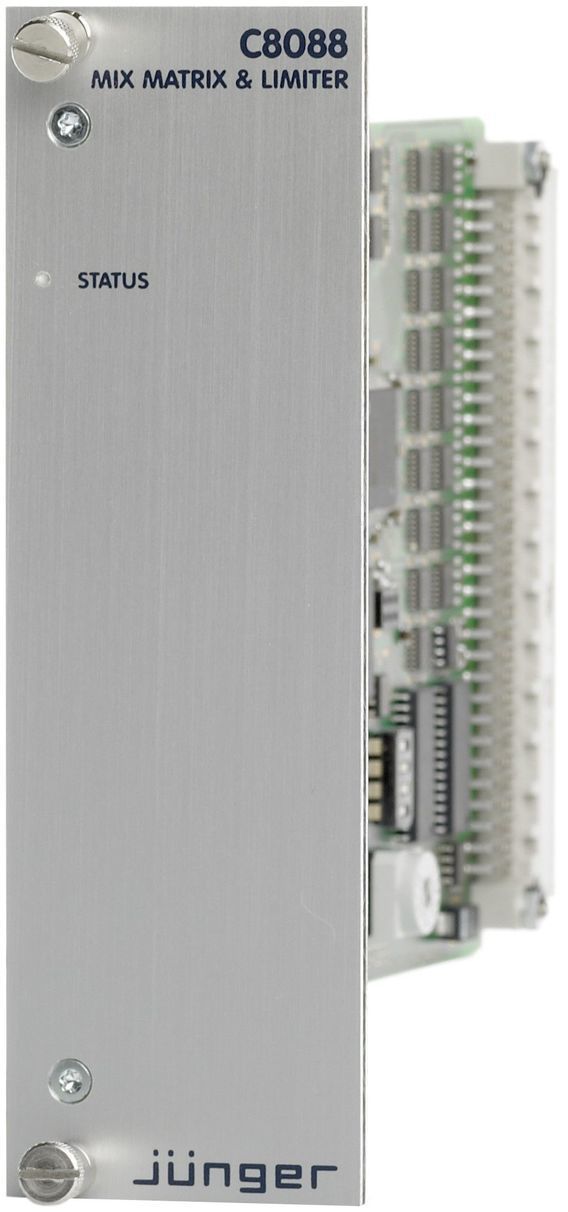

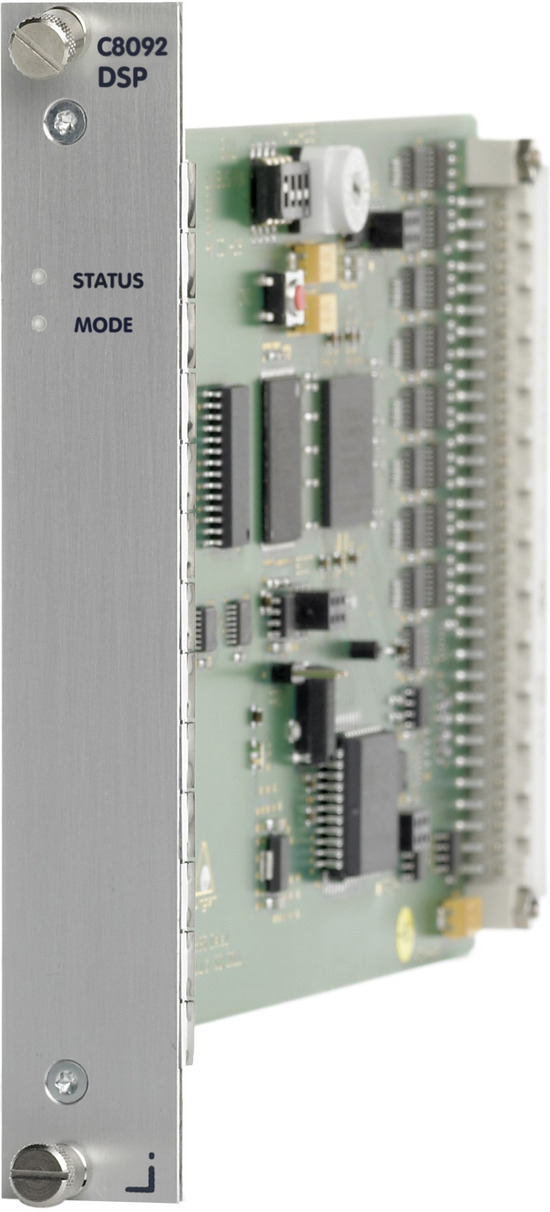

Audio Processing

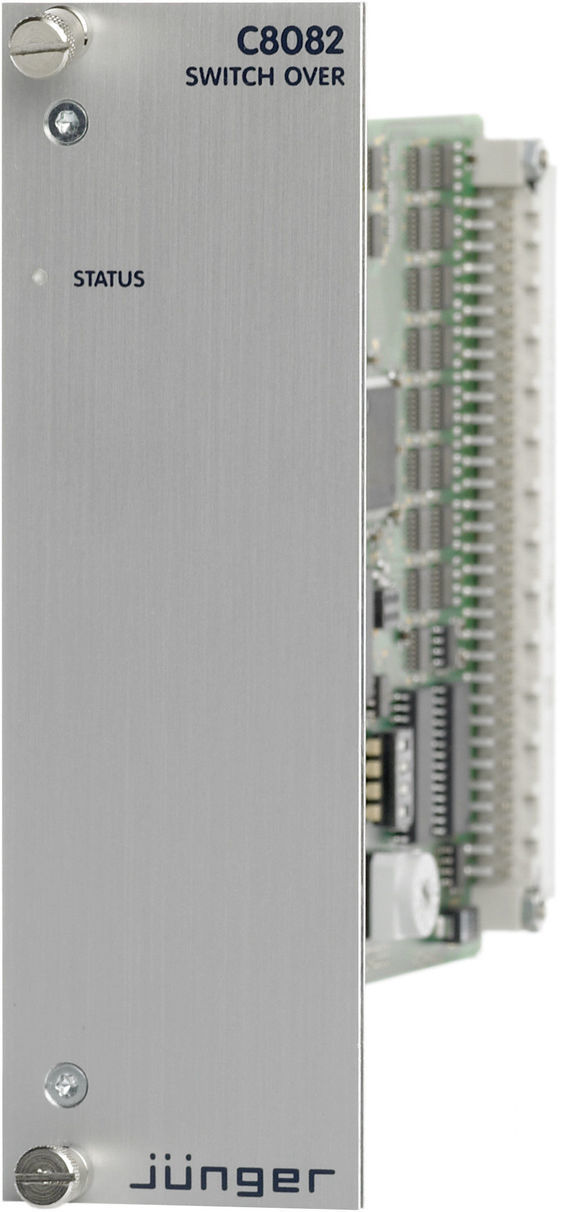

The modular line’s audio DSP boards offer individual audio processing solutions for al kinds of applications like - Loudness processing - Fail over / voice over - Upmix / downmix - Mixing - Delay

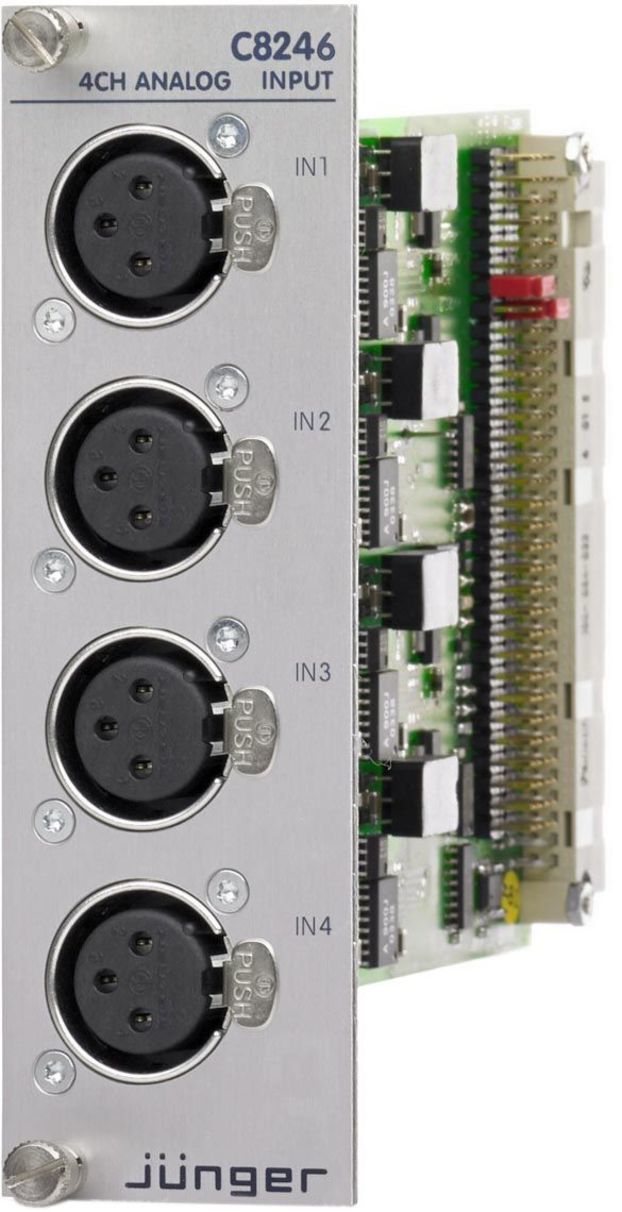

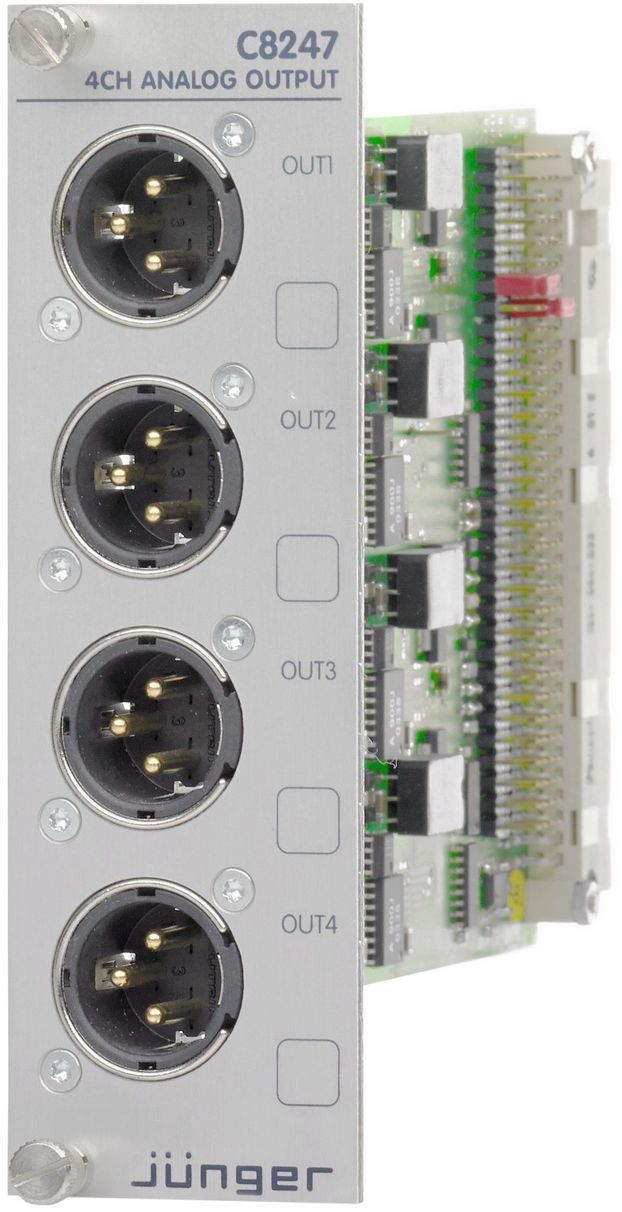

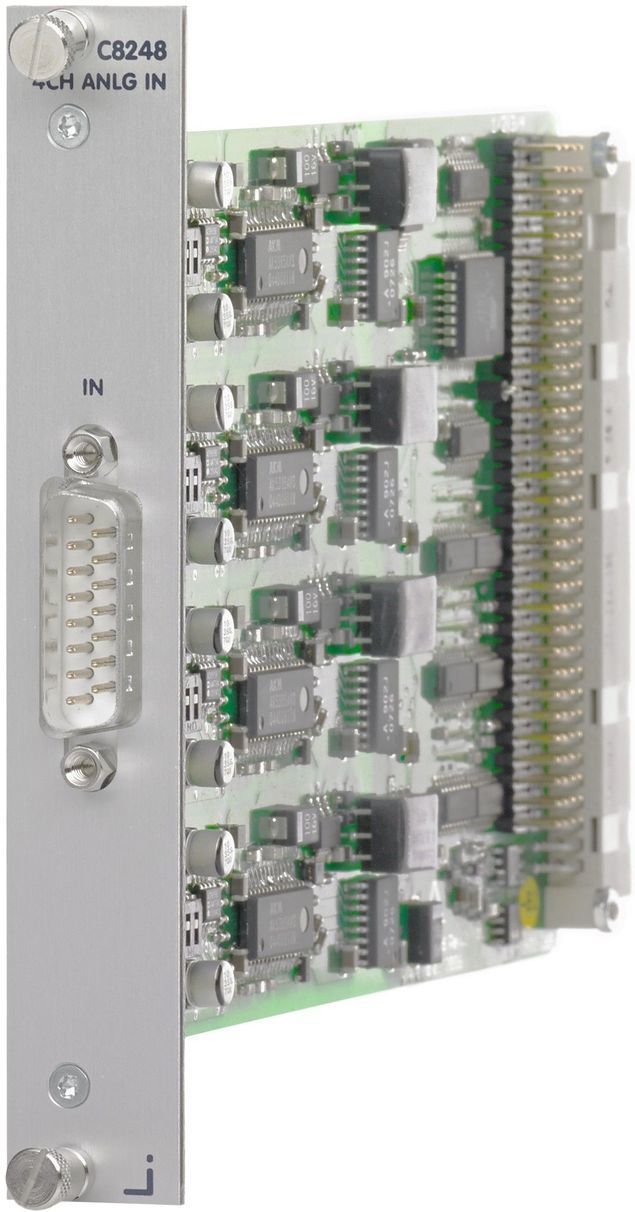

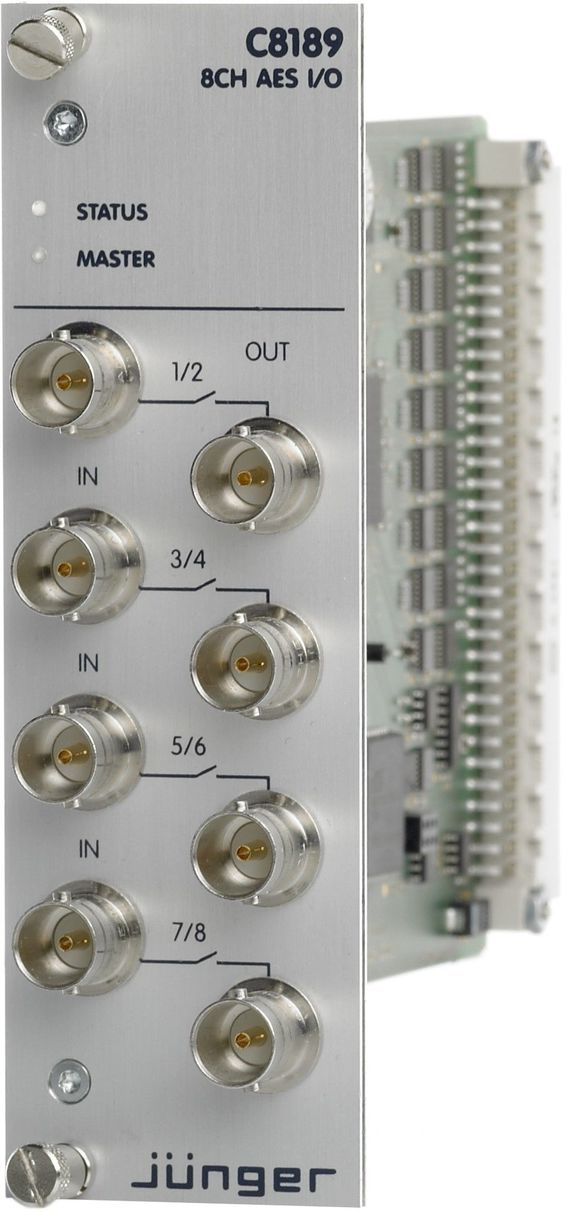

Analog & Digital Audio Interfacing

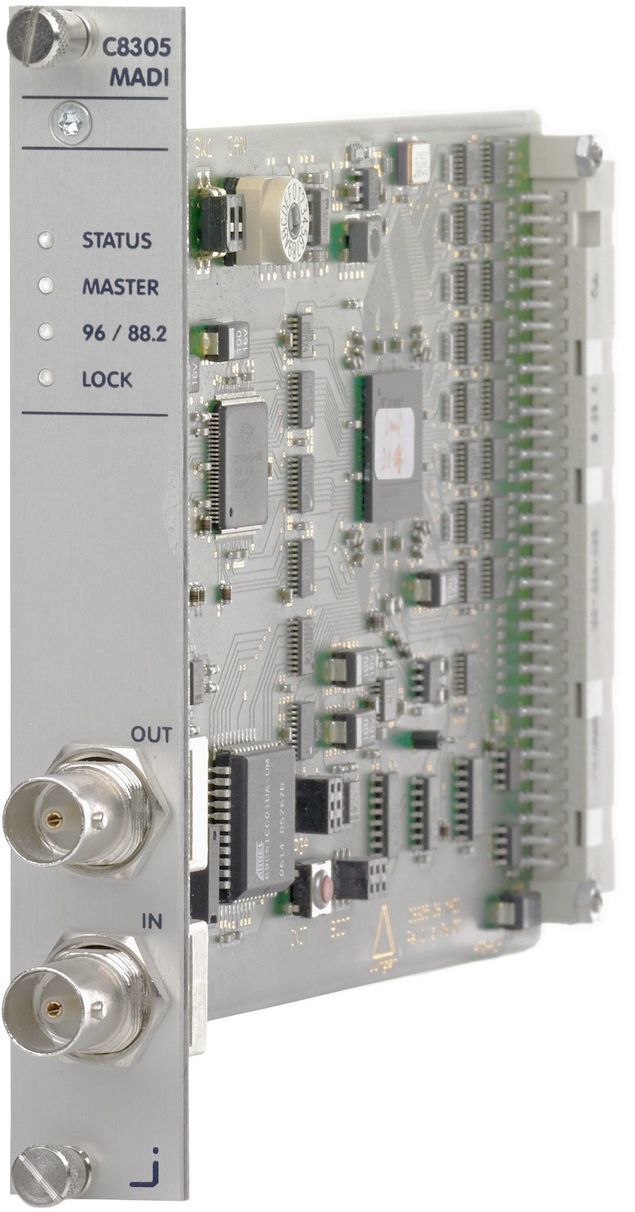

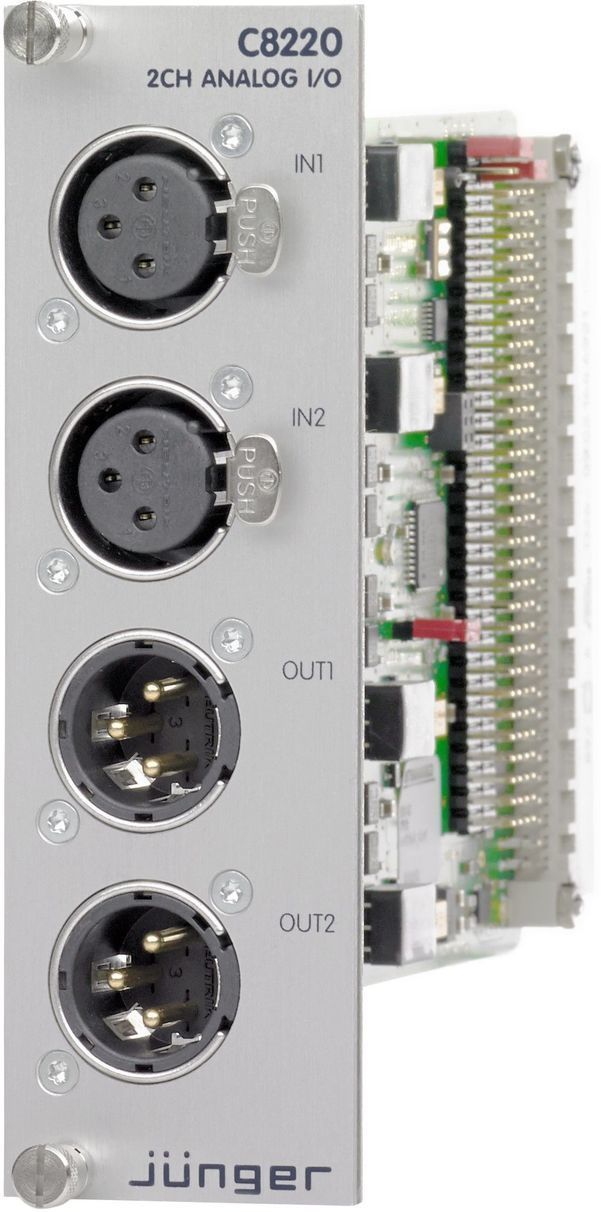

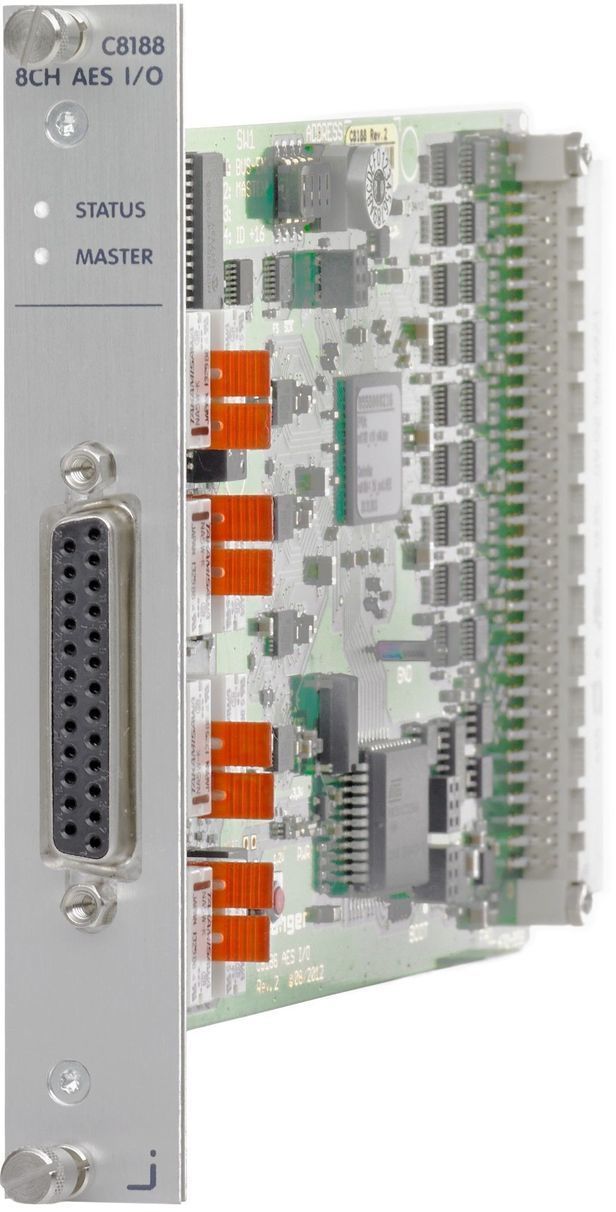

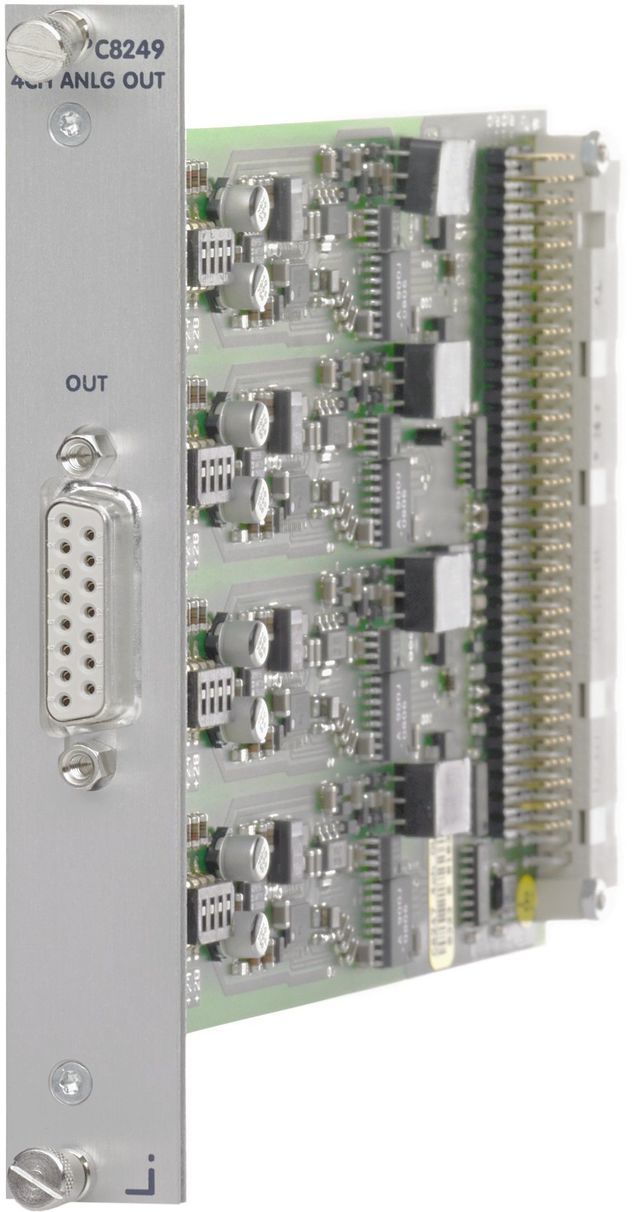

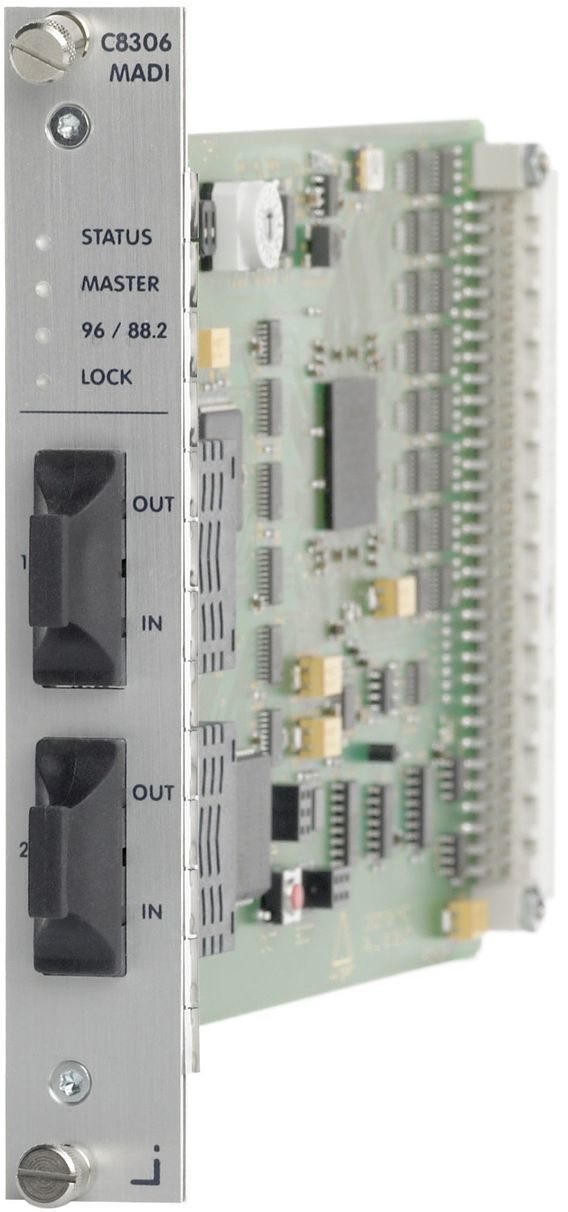

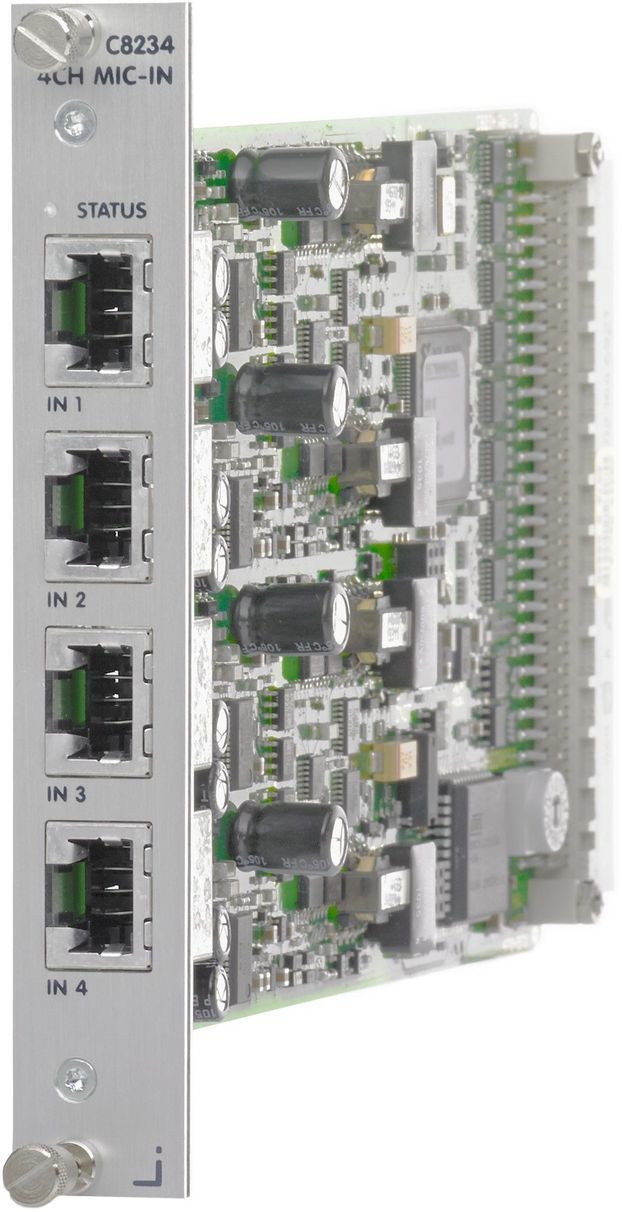

The modular line’s audio analog and digital audio interface boards gives you a free choice of I/O configurations to meet your individual requirement. - Analog audio interfaces - Digital audio interfaces - Micophone interfaces - MADI interfaces

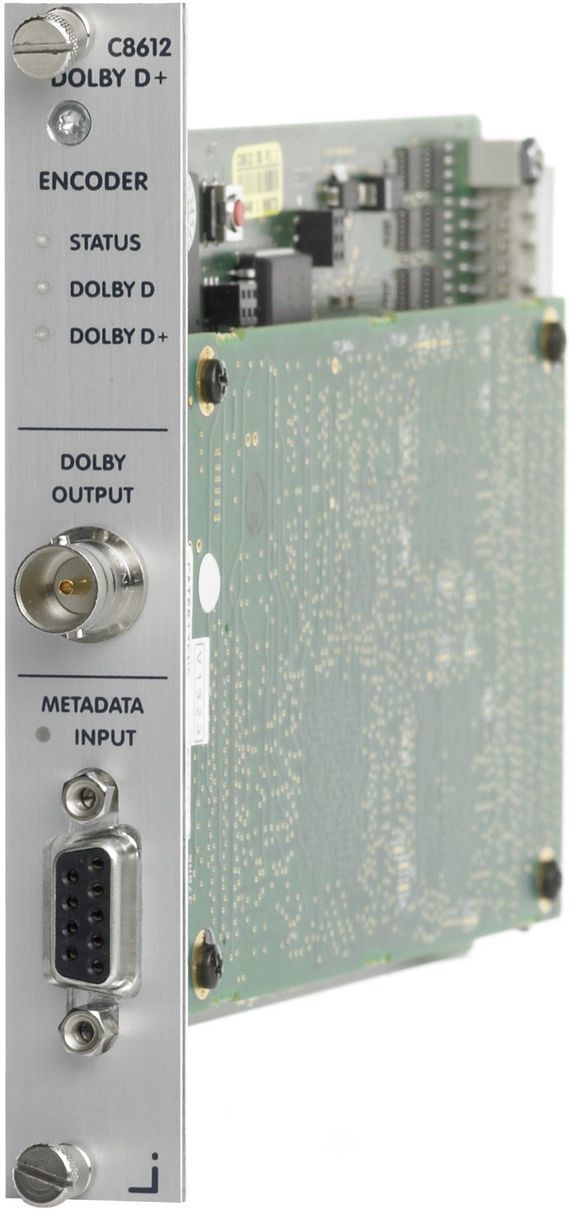

Dolby® Applications

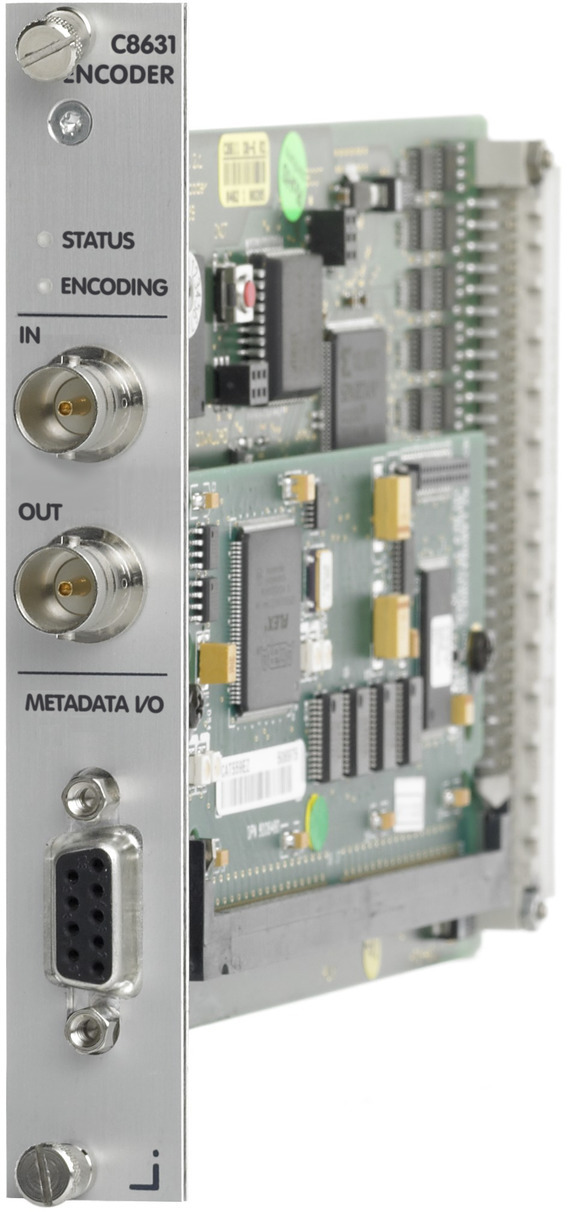

The modular line’s Dolby® processing boards offer encoding and decoding capabilities for the following Dolby® formats: • Dolby® E • Dolby® D • Dolby® D+ • Dolby® Pro Logic II
